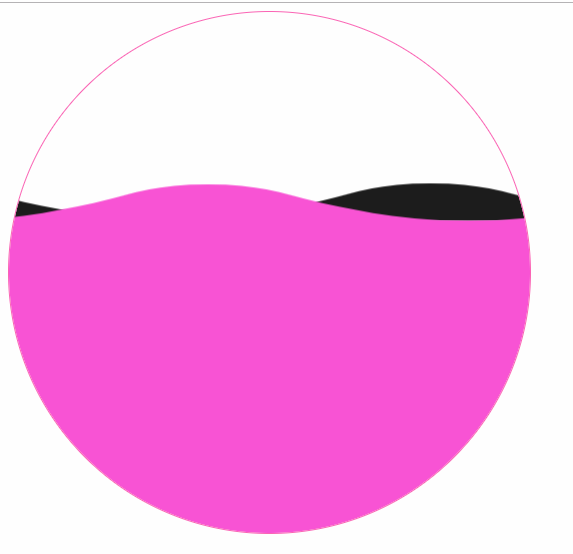

svg css3做一个动感的波浪效果

2019-06-27 03:24:45javascript, csscss

一根矢量的波浪

<svg viewBox="0 0 560 20">
    <use xlink:href="#wave"></use>
</svg>
<svg id="wave" width="100%" height="100%">
    <path d="M420,20c21.5-0.4,38.8-2.5,51.1-4.5c13.4-2.2,26.5-5.2,27.3-5.4C514,6.5,518,4.7,528.5,2.7c7.1-1.3,17.9-2.8,31.5-2.7c0,0,0,0,0,0v20H420z"></path>
    <path d="M420,20c-21.5-0.4-38.8-2.5-51.1-4.5c-13.4-2.2-26.5-5.2-27.3-5.4C326,6.5,322,4.7,311.5,2.7C304.3,1.4,293.6-0.1,280,0c0,0,0,0,0,0v20H420z"></path>
    <path d="M140,20c21.5-0.4,38.8-2.5,51.1-4.5c13.4-2.2,26.5-5.2,27.3-5.4C234,6.5,238,4.7,248.5,2.7c7.1-1.3,17.9-2.8,31.5-2.7c0,0,0,0,0,0v20H140z"></path>
    <path d="M140,20c-21.5-0.4-38.8-2.5-51.1-4.5c-13.4-2.2-26.5-5.2-27.3-5.4C46,6.5,42,4.7,31.5,2.7C24.3,1.4,13.6-0.1,0,0c0,0,0,0,0,0l0,20H140z"></path>

完整代码：

<!DOCTYPE html>
<html>

<head>
	<meta charset="utf-8">
	<meta name="viewport" content="width=device-width,initial-scale=1,user-scalable=no">
</head>

<body>
	<div>
		<div>
			<div>
				<div id="water">
					<svg viewBox="0 0 560 20">
						<path
							d="M420,20c21.5-0.4,38.8-2.5,51.1-4.5c13.4-2.2,26.5-5.2,27.3-5.4C514,6.5,518,4.7,528.5,2.7c7.1-1.3,17.9-2.8,31.5-2.7c0,0,0,0,0,0v20H420z">
						</path>
						<path
							d="M420,20c-21.5-0.4-38.8-2.5-51.1-4.5c-13.4-2.2-26.5-5.2-27.3-5.4C326,6.5,322,4.7,311.5,2.7C304.3,1.4,293.6-0.1,280,0c0,0,0,0,0,0v20H420z">
						</path>
						<path
							d="M140,20c21.5-0.4,38.8-2.5,51.1-4.5c13.4-2.2,26.5-5.2,27.3-5.4C234,6.5,238,4.7,248.5,2.7c7.1-1.3,17.9-2.8,31.5-2.7c0,0,0,0,0,0v20H140z">
						</path>
						<path
							d="M140,20c-21.5-0.4-38.8-2.5-51.1-4.5c-13.4-2.2-26.5-5.2-27.3-5.4C46,6.5,42,4.7,31.5,2.7C24.3,1.4,13.6-0.1,0,0c0,0,0,0,0,0l0,20H140z">
						</path>
					</svg>
					<svg viewBox="0 0 560 20">
						<path
							d="M420,20c21.5-0.4,38.8-2.5,51.1-4.5c13.4-2.2,26.5-5.2,27.3-5.4C514,6.5,518,4.7,528.5,2.7c7.1-1.3,17.9-2.8,31.5-2.7c0,0,0,0,0,0v20H420z">
						</path>
						<path
							d="M420,20c-21.5-0.4-38.8-2.5-51.1-4.5c-13.4-2.2-26.5-5.2-27.3-5.4C326,6.5,322,4.7,311.5,2.7C304.3,1.4,293.6-0.1,280,0c0,0,0,0,0,0v20H420z">
						</path>
						<path
							d="M140,20c21.5-0.4,38.8-2.5,51.1-4.5c13.4-2.2,26.5-5.2,27.3-5.4C234,6.5,238,4.7,248.5,2.7c7.1-1.3,17.9-2.8,31.5-2.7c0,0,0,0,0,0v20H140z">
						</path>
						<path
							d="M140,20c-21.5-0.4-38.8-2.5-51.1-4.5c-13.4-2.2-26.5-5.2-27.3-5.4C46,6.5,42,4.7,31.5,2.7C24.3,1.4,13.6-0.1,0,0c0,0,0,0,0,0l0,20H140z">
						</path>
					</svg>
				</div>
			</div>
		</div>
	</div>


	<style>
		.circle-countdown {
			width: 441px;
			height: 441px;
			position: relative;
			top: 0;
			left: 0;
			padding: 2.5rem;
			border: 1px solid #fb64b6;
			border-radius: 50%;
			overflow: hidden;
		}

		.wave-animation {
			overflow: hidden;
		}


		.wave-animation__percent {
			position: absolute;
			left: 0;
			top: 0;
			z-index: 3;
			width: 100%;
			height: 100%;
			display: flex;
			display: -webkit-flex;
			align-items: center;
			justify-content: center;
			color: #fff;
			font-size: 64px;
		}

		.wave-animation__water {
			position: absolute;
			left: 0;
			top: 0;
			z-index: -1;
			width: 100%;
			height: 100%;
			/* 调整这里的60%就可以改变进度，波浪高低 */
			transform: translate(0, calc(100% - 60%));
			background: #f852d6;
			transition: all 2s;
		}

		.wave-animation__water-wave {
			width: 200%;
			position: absolute;
			bottom: 100%;


		}

		.wave-animation__water-wave--back {
			right: 0;
			fill: #1d1d1d;
			animation: wave-back 1.4s infinite linear;
		}

		.wave-animation__water-wave--front {
			left: 0;
			fill: #f852d6;
			margin-bottom: -1px;
			animation: wave-front 0.7s infinite linear;
		}

		@keyframes wave-front {
			100% {
				transform: translate(-50%, 0);
			}
		}

		@keyframes wave-back {
			100% {
				transform: translate(50%, 0);
			}
		}
	</style>
</body>

</html>
